CL 20

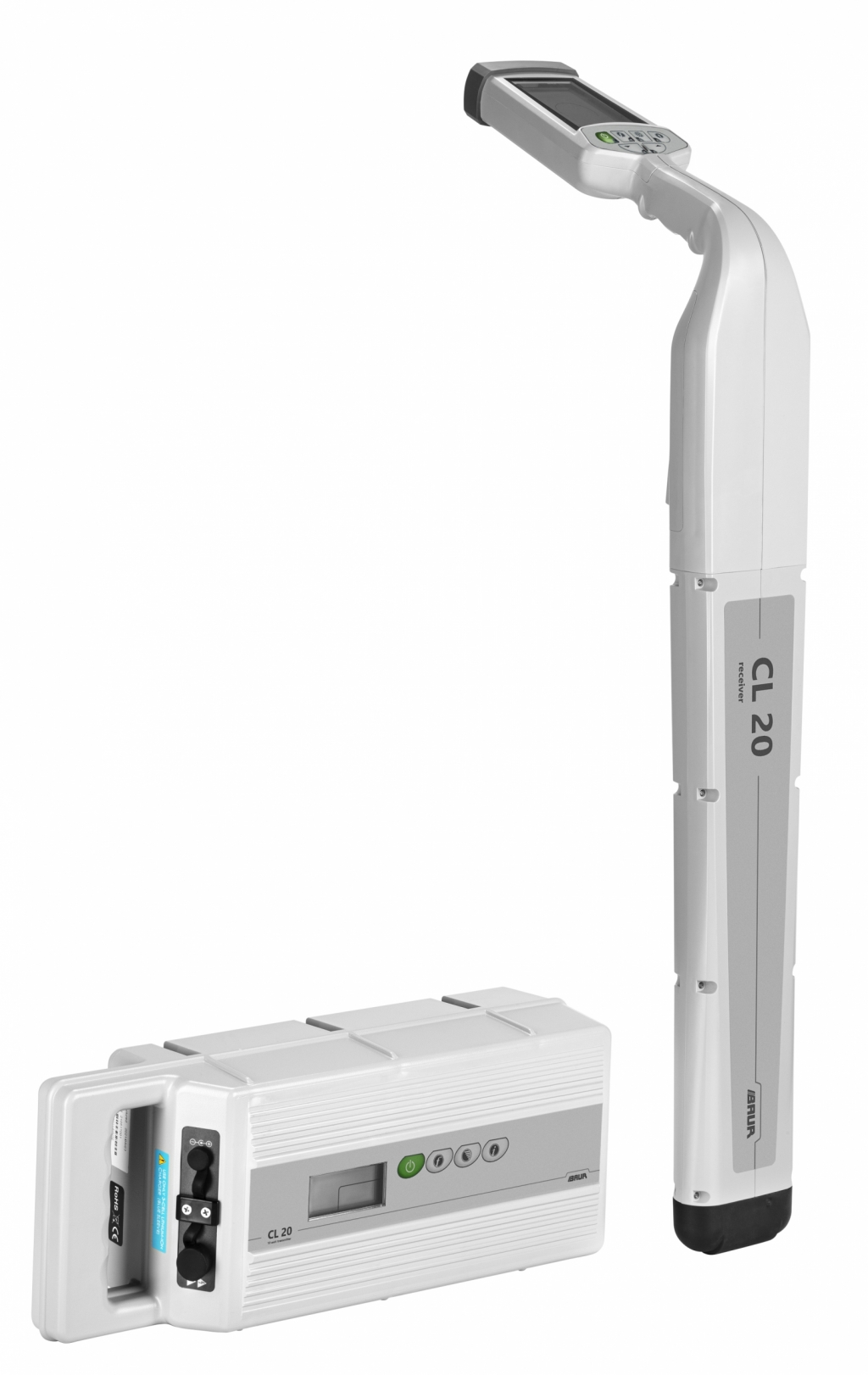

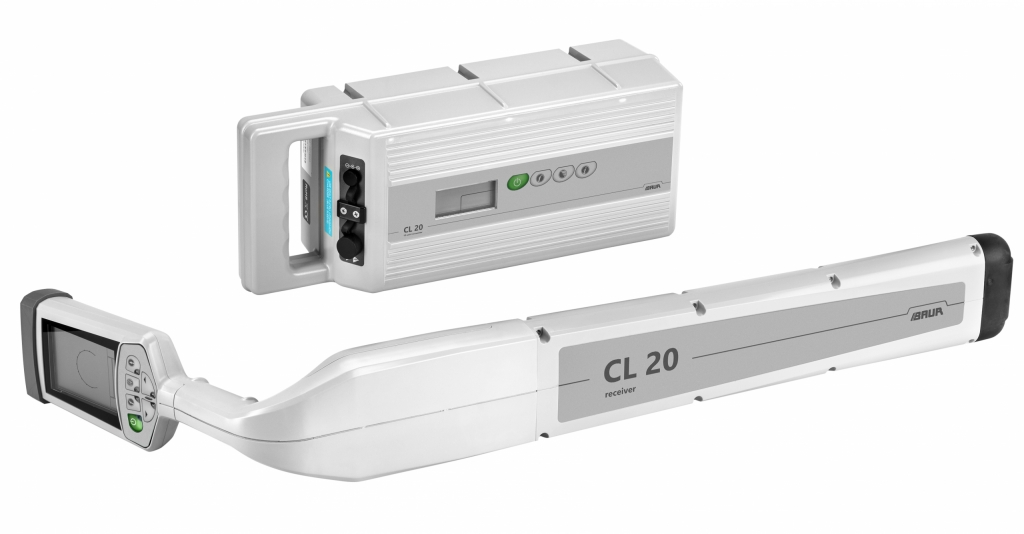

The CL 20 cable locator is used for route tracing, long runs of pipe and cable, as well
as basic service lines.
Multiple active frequencies allow the user to accurately locate with a minimum of
interference. Passive frequencies identify “live” and charged lines by their naturally
occurring electromagnetic fields. The CL 20 offers multiple passive frequencies –
50 Hz, 60 Hz, Radio Frequency, Cathodic Protection Rectifier, CATV – allowing line
locating without the use of a transmitter.
Updated transmitter functions include improved transmitter induction, multifrequency coupled induction ranging from 8 kHz to 82 kHz, and automatic
impedance matching for direct connections. The 10 watt transmitter has the ability
to simultaneously apply two frequencies to a utility.
All functions are accessed via weather-proof membrane buttons and both user input
and transmitter status are verified with audible responses
